HM-6580 Automatic Band Saw
CUTTING AND SLICING
Automatic Band Saw
HM-6580
Precise and stable cuts for frozen meat
Designed for the precise cutting of frozen meat, bone-in meat, and fish products at temperatures as low as -30°C, ensuring high performance in industrial processes. Its feed system with pressure plates and servo-motor-assisted thickness adjustment provides stable feeding and uniform, high-precision cuts. It features a transmission with vibration absorption down to 0.01 mm, adjustable cutting speed, and 5 programmable memory settings that optimize operation and reduce waste.
Main benefits
- Adjustable tension system for saw blades.
- Bilateral drive wheels that prevent saw misalignment.
- Smart touch control panel.
- 5 programmable cut-off memories.
- Thickness adjustment using a servomotor.
- Adjustable cutting speed.
Applications
- Pork.
- Beef.
- Sausages.
- Pet food.
- Others.
Technical specifications
| Material | 304 stainless steel |
| Dimensions | 2200 mm (length) 1220 mm (width) 1990 mm (height) |
| Work table size | 800x650 mm |
| Maximum loading height | 150 mm |
| Maximum cutting thickness | 200 mm |
| Saw specification | 3430x16x0.56x4T mm |
| Power | 7 hp |
| Air pressure | 58 psi |
| Air consumption | 10 L/min |
| Weight | 1200 kg |
| Cutting speed | 10 cycles/min |
| Saw speed | 38 m/s |
Dimensions and specifications may vary depending on the selected HEMAN® model and equipment configuration.

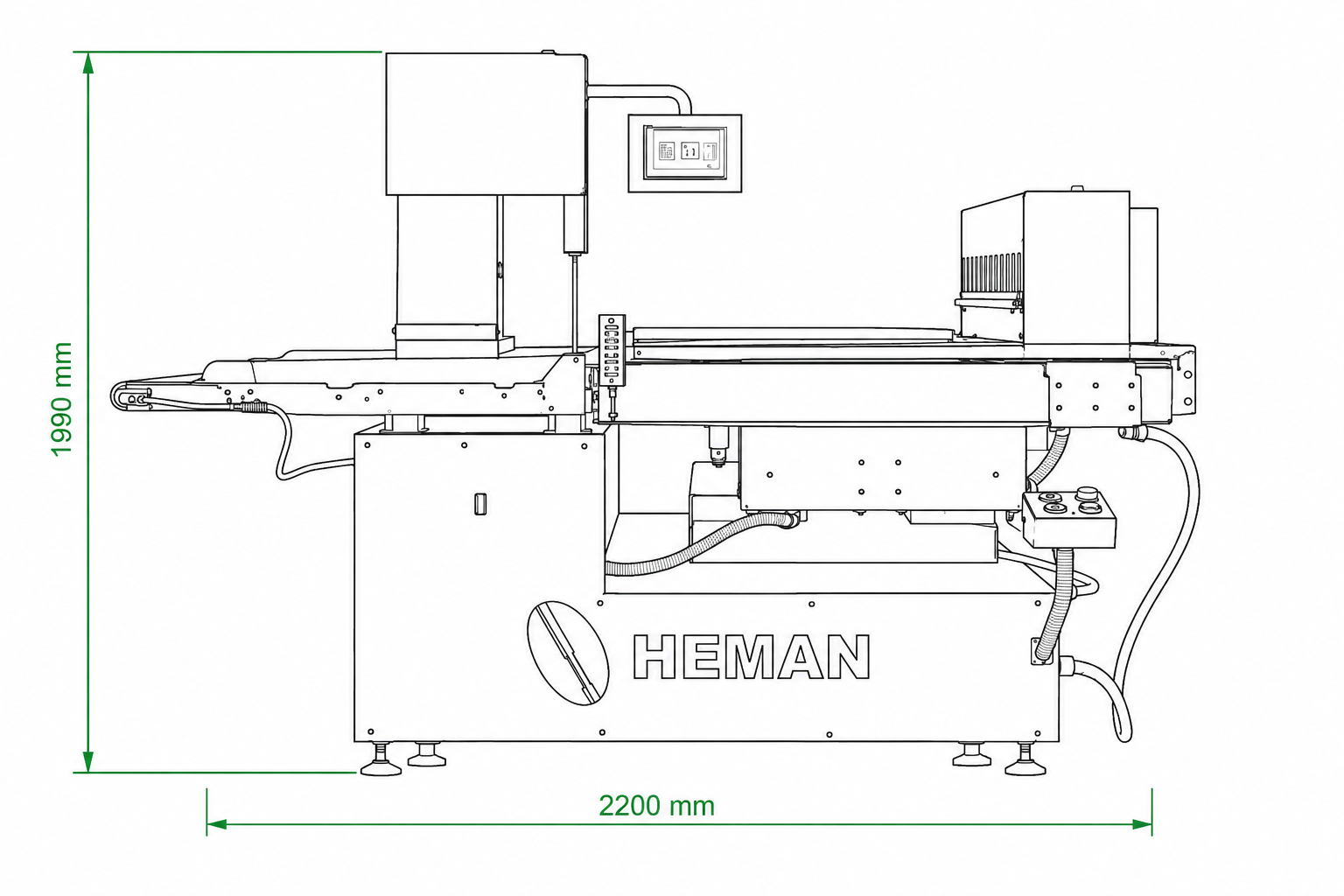

Technical drawing
Main benefits
Type 304 stainless steel
Maximum corrosion resistance.
GUARANTEED INNOVATION
Innovating for you…
Easy maintenance
Quick access to spare parts.
Guaranteed hygiene
It meets hygiene standards.
Higher performance
Maximize production output.
