Continuous Frozen Meat Dicer HM-300
CUTTING AND SLICING
HM-300 Frozen Meat Dicer
Uniform cubes in frozen meat
Designed for the precise cubing of frozen meat, this machine processes products of varying sizes and shapes while maintaining high uniformity. Its precision blade system, continuous feeding via multiple conveyor belts, and adaptive compression ensure a stable flow and consistent cuts. PLC control with a touchscreen allows for precise parameter adjustment, optimizing productivity and product utilization in industrial processes.
Main benefits
- Cutting system using high-precision blades.
- Feeding system with multiple synchronized conveyor belts.
- Adaptive compression system that stabilizes the product during cutting.
- Automatic pressure adjustment according to the height of the product.
- PLC control with touch screen for intuitive operation.
- Continuous adjustment of cutting speed and feed length.
Applications
- Pork.
- Beef.
- Others.
Technical specifications
| Dimensions | 1340 mm (length) 720 mm (width) 1330 mm (height) |
| Main engine power | 4 hp |
| Power of the feed motor | 1 hp |
| Cutting speed | 35/85 times/min |
| Feed size | 70x300 mm |
| Cube size | 12–60 mm customizable |
| Slice thickness | 5–100 mm |
| Production | 500–800 kg/h |
| Weight | 380 kg |
| Ideal product temperature | -10ºc |
Dimensions and specifications may vary depending on the selected HEMAN® model and equipment configuration.

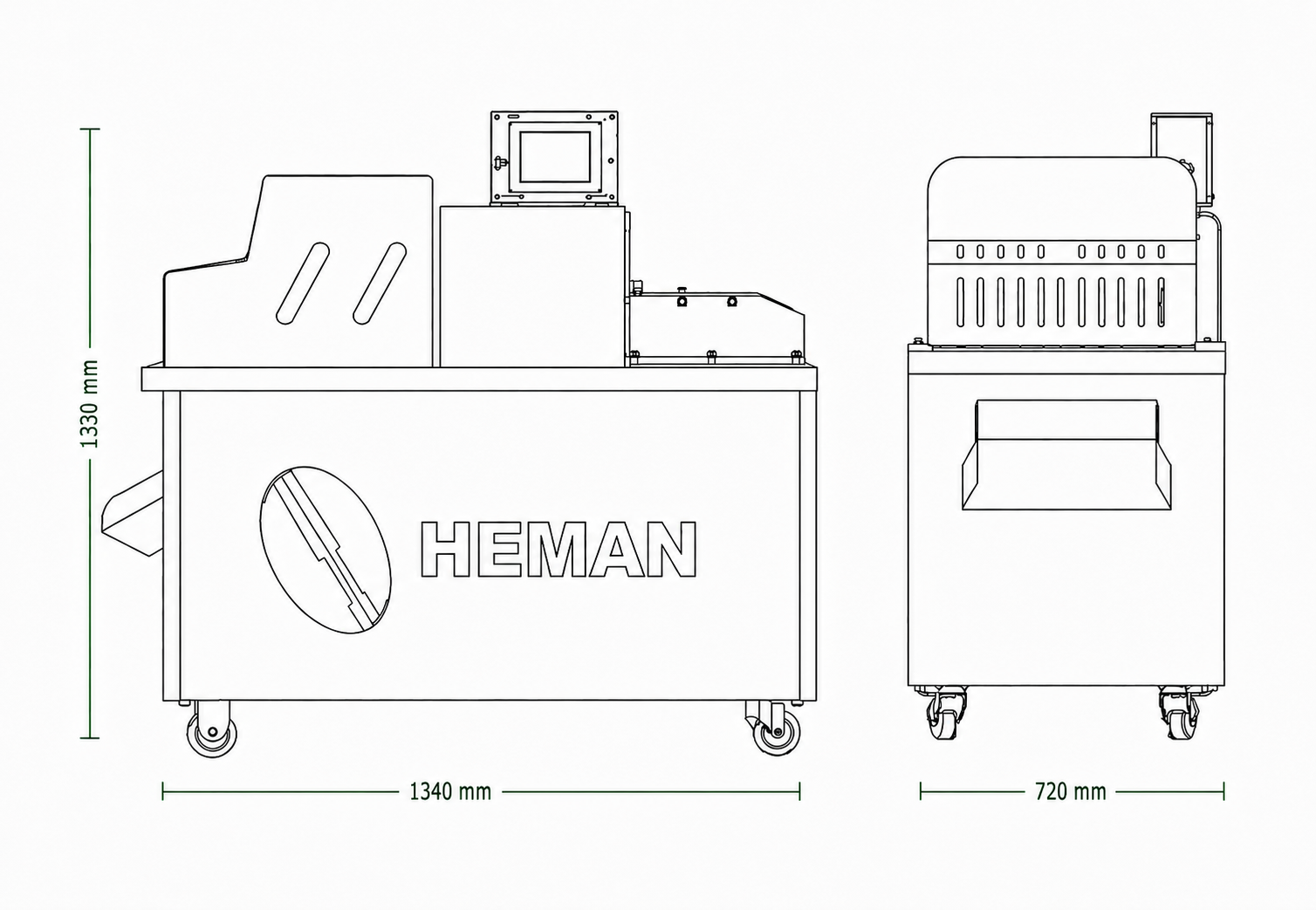

Technical drawing
DEMONSTRATION VIDEO
Continuous cutting
for precise and uniform
frozen meat portions.
Main benefits
Type 304 stainless steel
Maximum corrosion resistance.
GUARANTEED INNOVATION
Innovating for you…
Easy maintenance
Quick access to spare parts.
Guaranteed hygiene
It meets hygiene standards.
Higher performance
Maximize production output.
Can't find the right machine?
Contact us for expert advice. We have the ideal machinery to optimize your process.
Request a consultation
