HM-35 longitudinal cutting saw
CUTTING AND SLICING
Rip saw
HM-35
Continuous longitudinal cutting with maximum precision
This machine is designed for the longitudinal cutting of frozen, bone-in meat products. Ideal for dividing pig's trotters, whole chickens, and other similar products, it produces uniform cuts that facilitate subsequent cooking, deboning, or packaging processes. Its automatic continuous feeding system ensures stable, safe, and high-performance operation, increasing productivity and reducing operational risk.
Main benefits
- Automatic continuous feeding system.
- Uniform and high-precision longitudinal cutting.
- Designed for frozen products with bone.
- Construction in type 304 stainless steel.
- Hygienic design for easy cleaning and maintenance.
Applications
- Pork.
- Poultry.
- Others.
Technical specifications
| Dimensions |
1400 mm (length) 800 mm (width) 1735 mm (height) |
| Machine passage width | 20–100 mm adjustable |
| Machine step height | 366 mm |
| Work table size | 1400x800 mm |
| Saw blade size | 2490x16 mm |
| Blade speed | 23 m/s |
| Feeding speed | 0.43 m/s |
| Power | 3 hp |
| Weight | 225 kg |
Dimensions and specifications may vary depending on the model and configuration of the HEMAN® equipment.

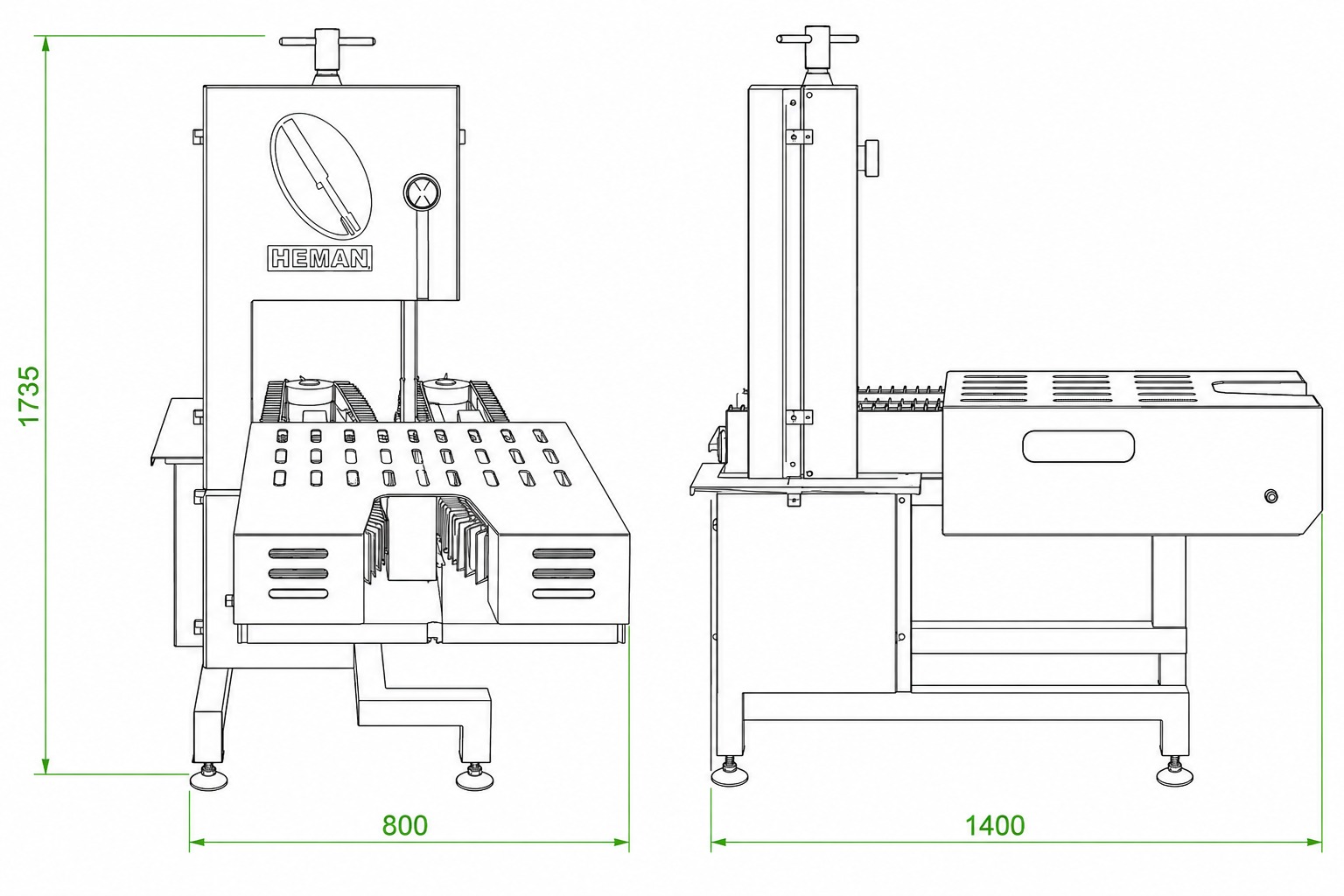

Technical drawing
DEMONSTRATION VIDEO
Longitudinal section
continuous and uniform
in industrial production.
Main benefits
304 stainless steel
Maximum corrosion resistance.
Guaranteed innovation
Innovating for you…
Easy maintenance
Easy access to spare parts and services.
Guaranteed hygiene
Designed to meet sanitary standards.
Higher performance
Maximum operational efficiency.
