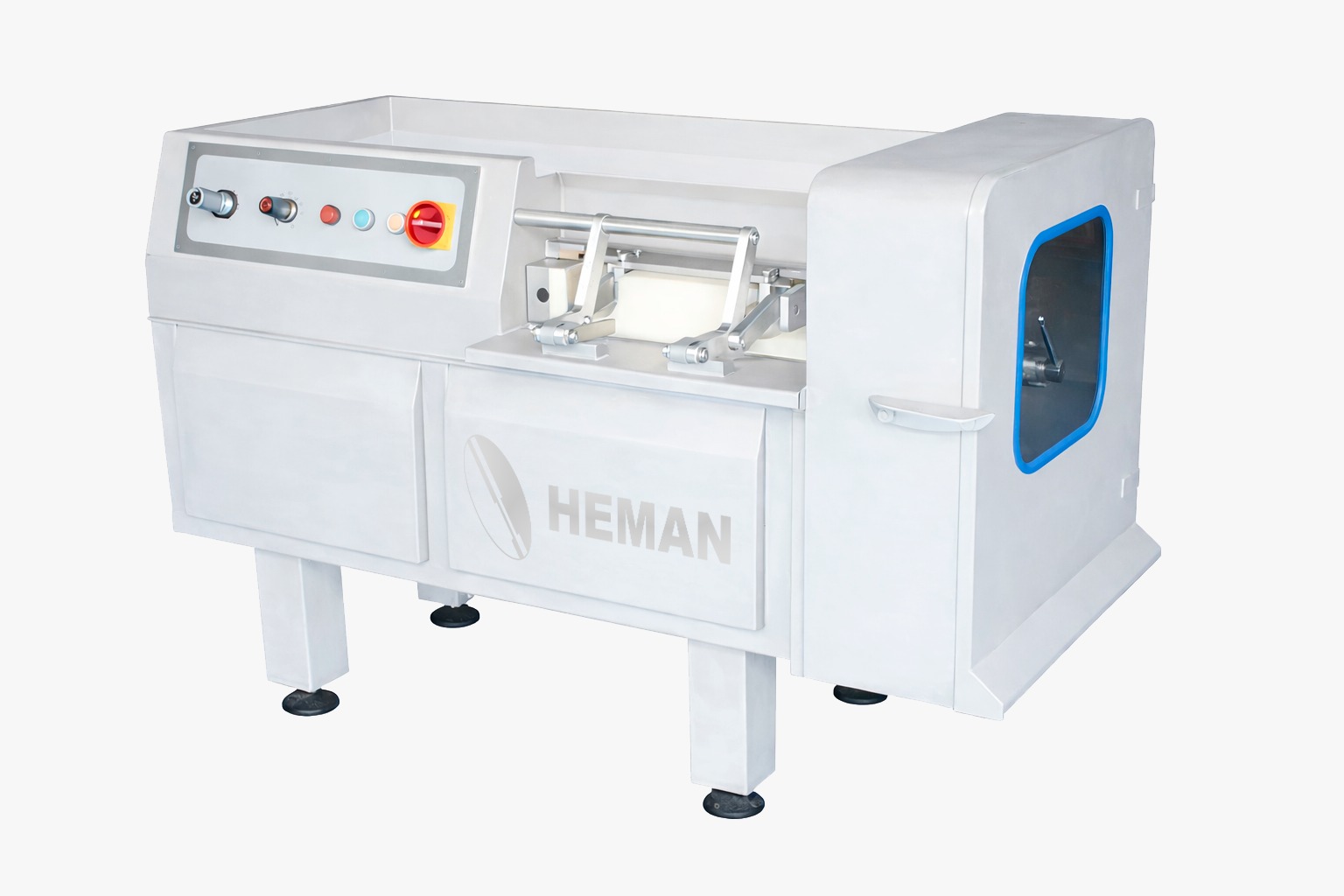

HM-550 Cubing Machine
CUTTING AND SLICING
Meat dicer
HM-550
Uniform cuts with maximum precision
This machine is designed to cut meat products into cubes or strips with maximum precision, ensuring uniform size and excellent presentation of the final product. Its high-power hydraulic system and precision blades allow for continuous, efficient processing with minimal waste. Manufactured from 304 stainless steel for maximum hygiene, strength, durability, and easy cleaning in the food industry.
Main benefits
- High-power hydraulic system for efficient cutting.
- High-precision grid-type blades with great penetration capacity.
- Controlled push system for uniform feeding.
- Continuous adjustment of speed and cutting thickness.
- Pressure design for more precise cuts.
Applications
- Pork.
- Poultry.
- Beef.
- Others.
Technical specifications
| Material | 304 stainless steel |
| Dimensions |
1940 mm (length) 980 mm (width) 1100 mm (height) |
| Cutting size | 3–40 mm |
| Maximum feed size | 550x120x120 mm |
| Production | 800 kg/h |
| Power | 5 hp |
| Weight | 500 kg |
| Minimum product temperature | -5ºc |
Dimensions and specifications may vary depending on the model and configuration of the HEMAN® equipment.

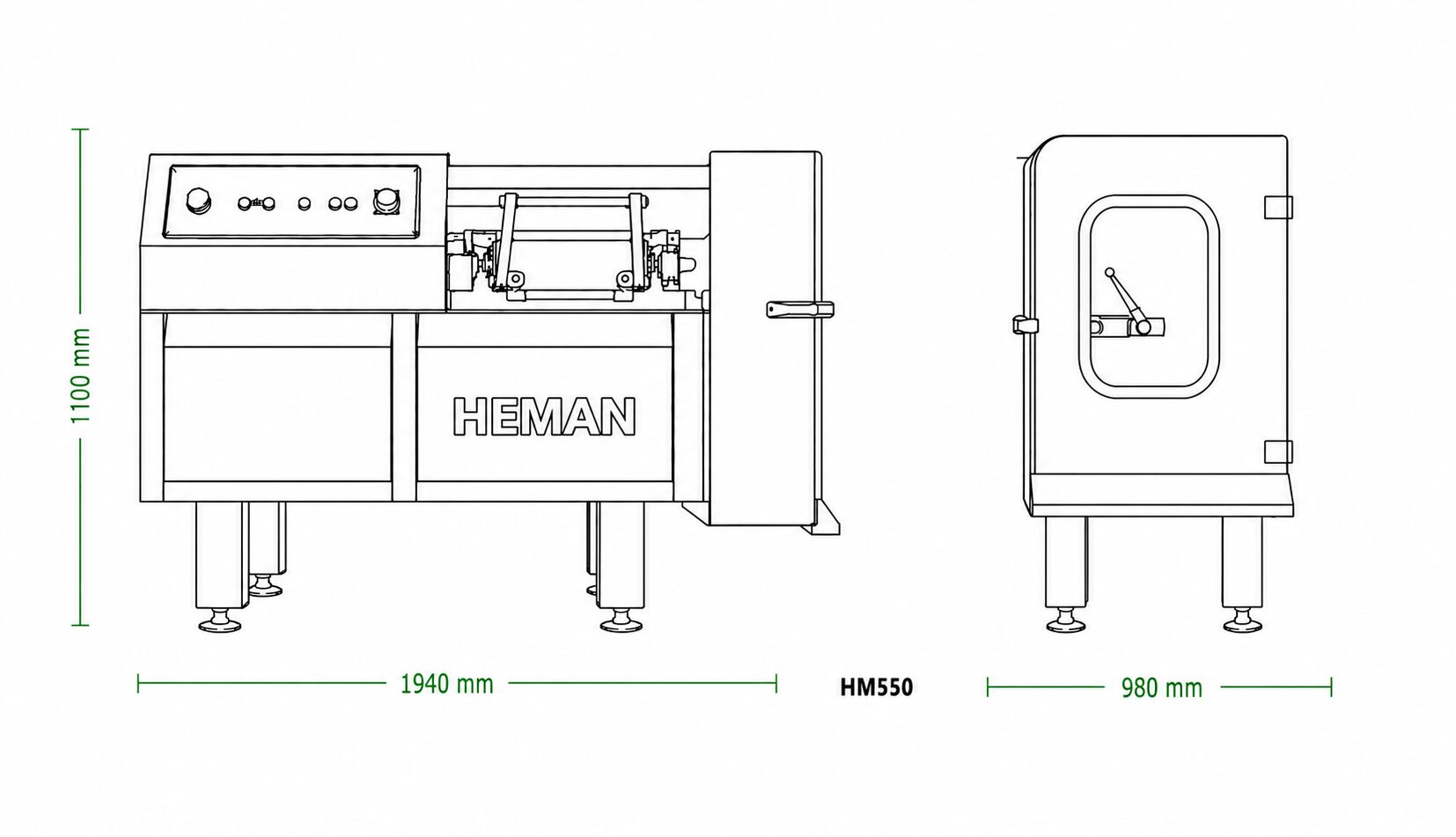

Technical drawing
DEMONSTRATION VIDEO
Uniform cuts
with precision and efficiency
in each process.
Main benefits
Type 304 stainless steel
Maximum corrosion resistance.
Guaranteed innovation
Innovating for you…
Easy maintenance
Easy access to spare parts and services.
Guaranteed hygiene
Designed to meet sanitary standards.
Higher performance
Maximum operational efficiency.
Can't find the right machine?
Contact us for expert advice. We have the ideal machinery to optimize your process.
Request a consultation
