Continuous heat shrink tunnel
PACKING
Continuous Shrink Tunnel
Uniform heat shrinking for superior presentation and protection
Designed for the uniform shrinking of bags onto pre-vacuum-packed products, improving their presentation, protection, and preservation during storage and distribution. Its three-dimensional hot water spray system allows the bag to conform evenly to the product's shape. It features adjustable transport speeds from 8 to 26 m/min and PLC control for efficient and continuous operation.
Main benefits
- PLC type screen control.
- Speed variator.
- IP67 rated extraction fan.
- Stainless steel pump with IP55 protection.
- Reducer with IP55 protection.
- High temperature resistant conveyor belt (PP).
Applications
- Pork.
- Poultry.
- Beef.
- Others.
Technical specifications
| Material | 304 stainless steel |
| Dimensions | 1500 mm (length) 900 mm (width) 1750 mm (height) |
| Maximum passage width | 520 mm |
| Maximum step height | 250 mm |
| Steam outlet diameter | 165 mm |
| Noise level | 50 dB |
| Weight | 520 kg |
Dimensions and specifications may vary depending on the selected HEMAN® model and equipment configuration.

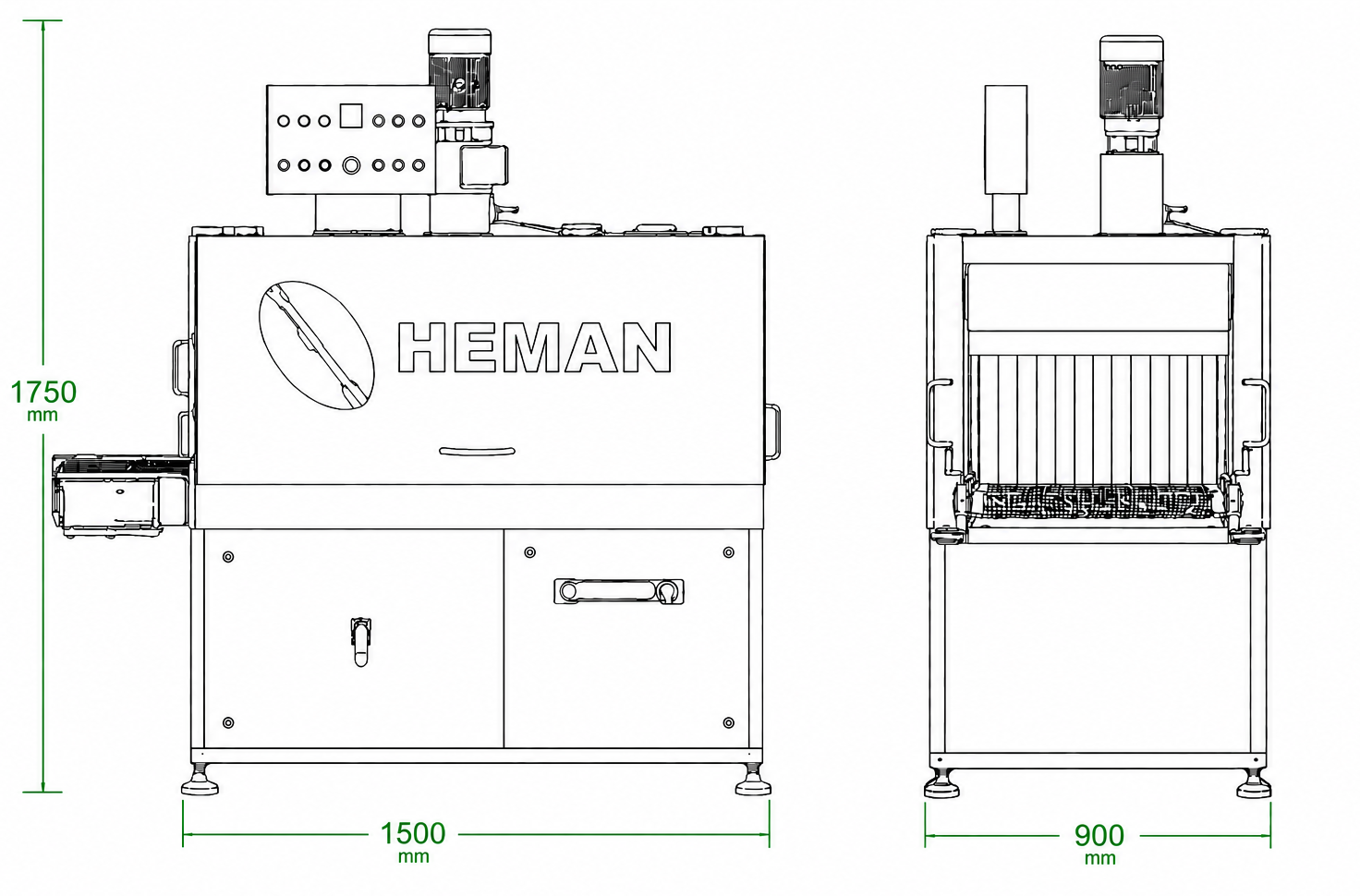

Technical drawing
Main benefits
Type 304 stainless steel
Maximum corrosion resistance.
GUARANTEED INNOVATION
Innovating for you…
Easy maintenance
Quick access to spare parts.
Guaranteed hygiene
It meets hygiene standards.
Higher performance
Maximize production output.
